RIPP / Integrated resin post-processing

Finished parts.One machine.

Print · Drain · Wash · Cure

RIPP prints, washes, and cures without moving the part between machines. Start the job. Open the enclosure when it is finished.

Get launch updates See the workflow

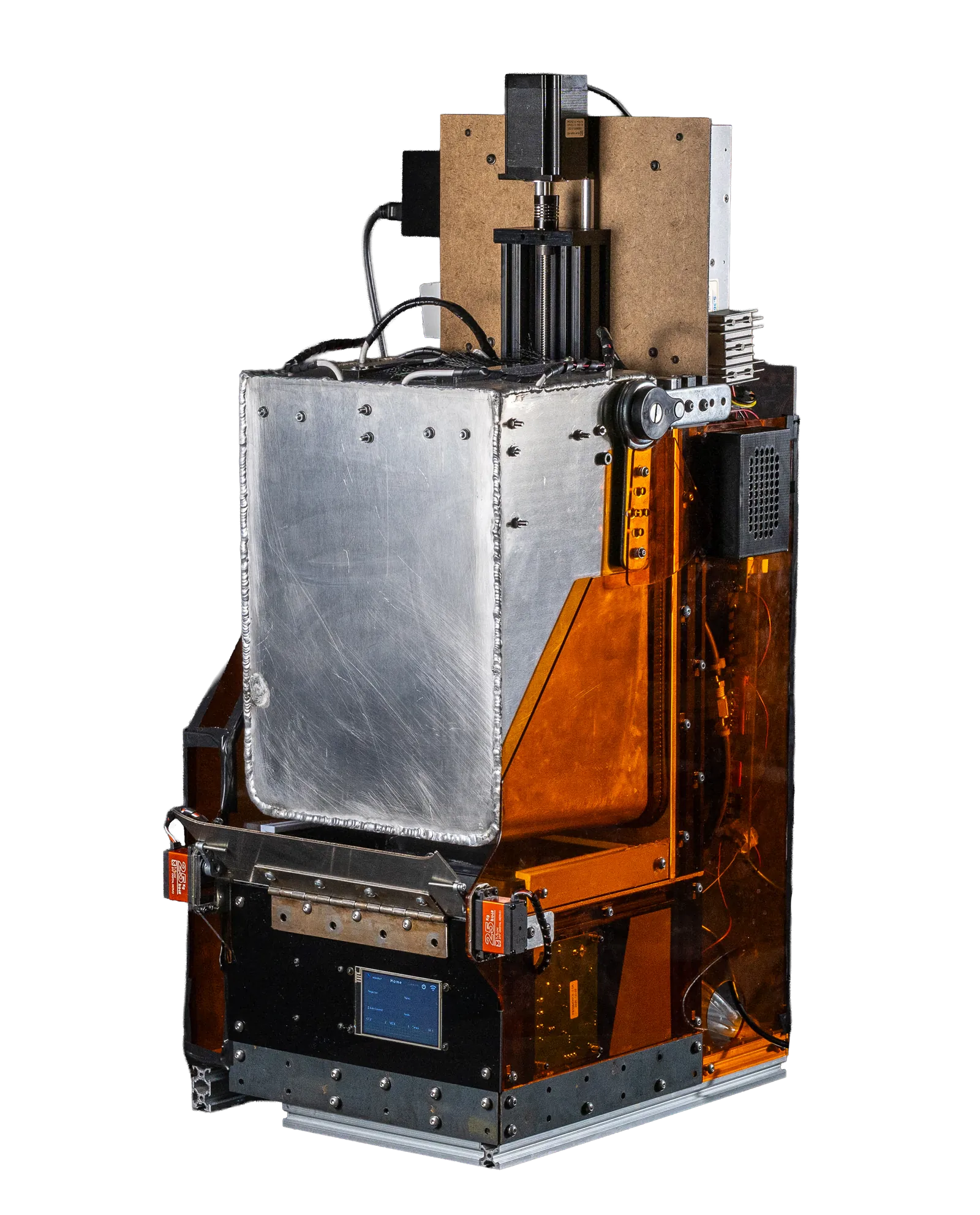

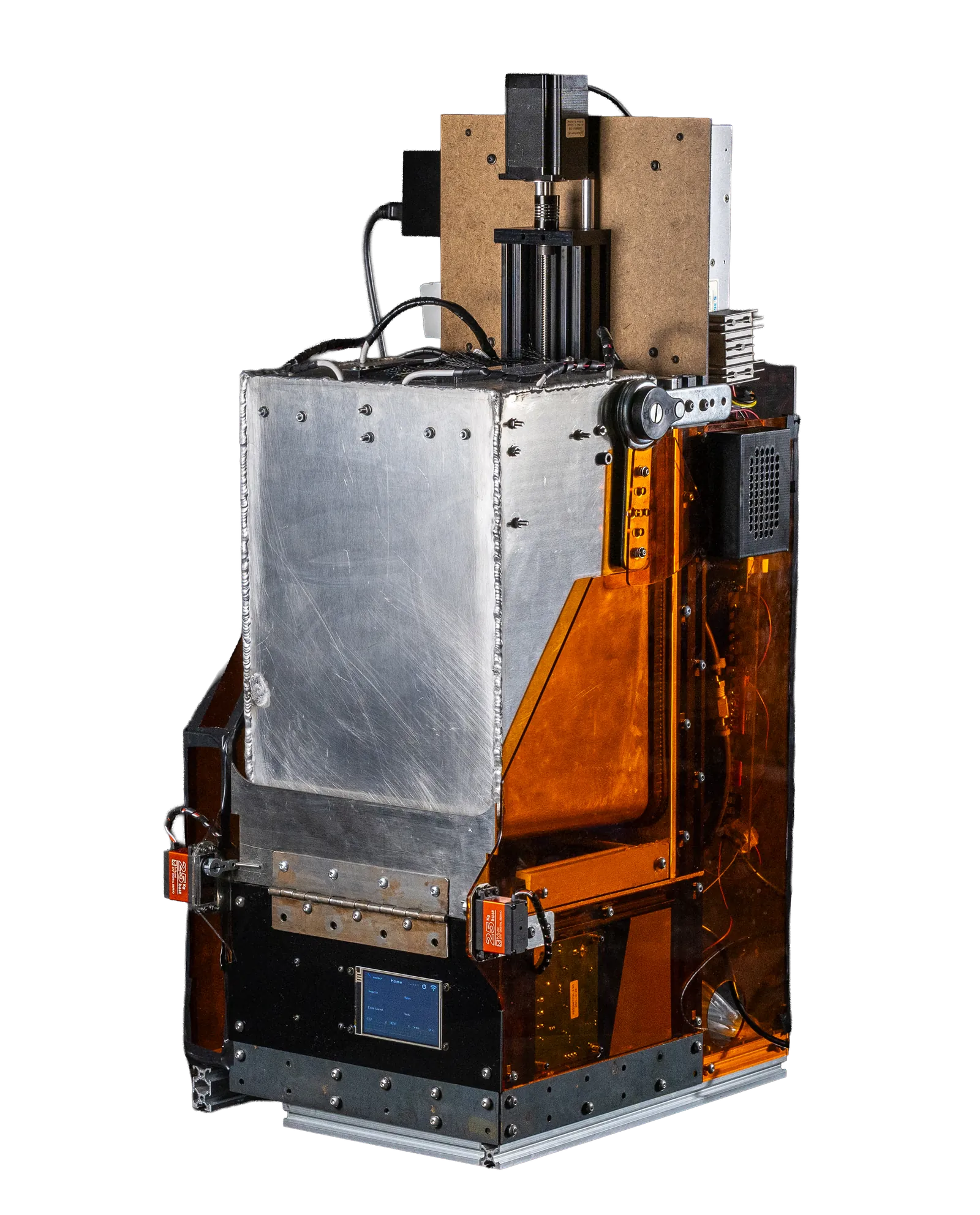

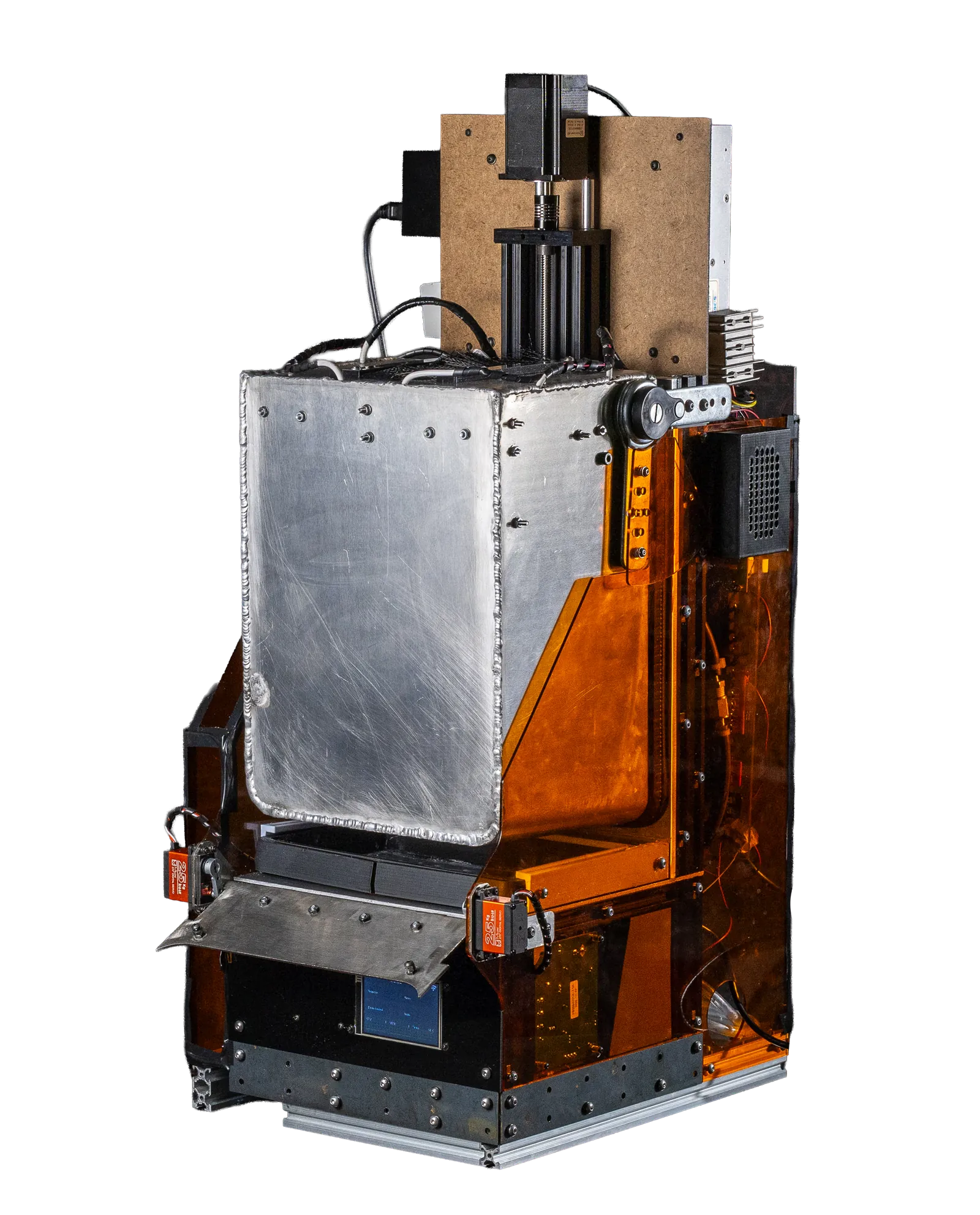

RIPP integrated resin printer and post-processing prototype
Working prototype Scroll to open

Standard resin printing

Printing is only the first step.

A finished print still has to be removed wet, washed in solvent, dried, and UV cured. That means separate equipment and repeated handling.

  1. 01

    Print

    The part leaves the printer coated in resin.

  2. 02

    Unload

    Remove the wet build plate.

  3. 03

    Wash

    Move the part into a solvent bath.

  4. 04

    Dry

    Drain the part before curing.

  5. 05

    Cure

    Move it again for UV exposure.

Printer. Wash station. Cure station. RIPP combines all three.

RIPP workflow

Load once. Unload finished.

The build stays inside RIPP through printing, draining, washing, and curing.

  1. 01

    Print

    MSLA forms the part.

  2. 02

    Drain

    Excess resin clears before washing.

  3. 03

    Wash

    Circulated wash fluid removes uncured resin.

  4. 04

    Cure

    Integrated UV completes the part.

  5. 05

    Unload

    Remove a ready-to-handle part.

No wet transfer between separate machines.

The integrated system

Printing and post-processing. Built together.

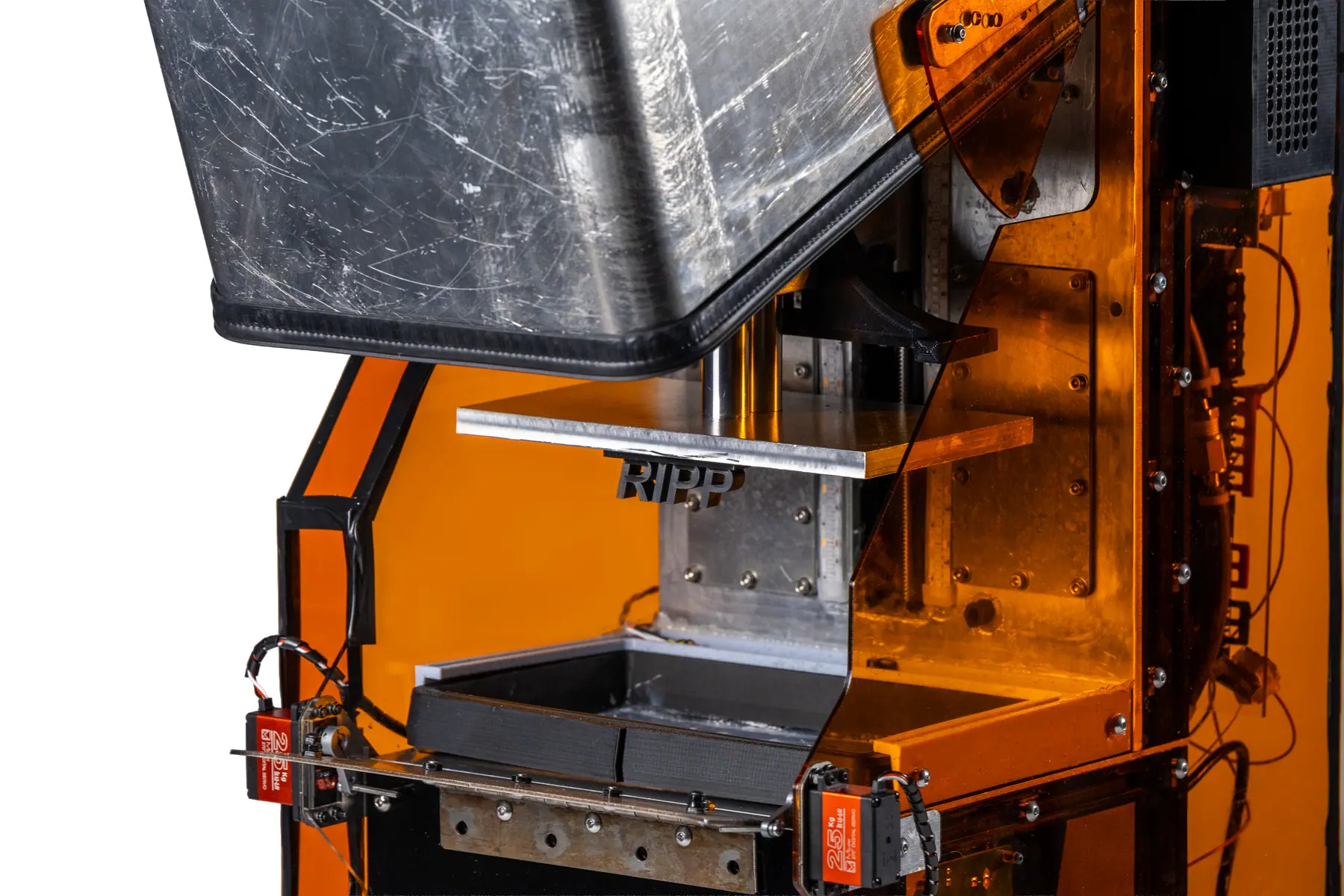

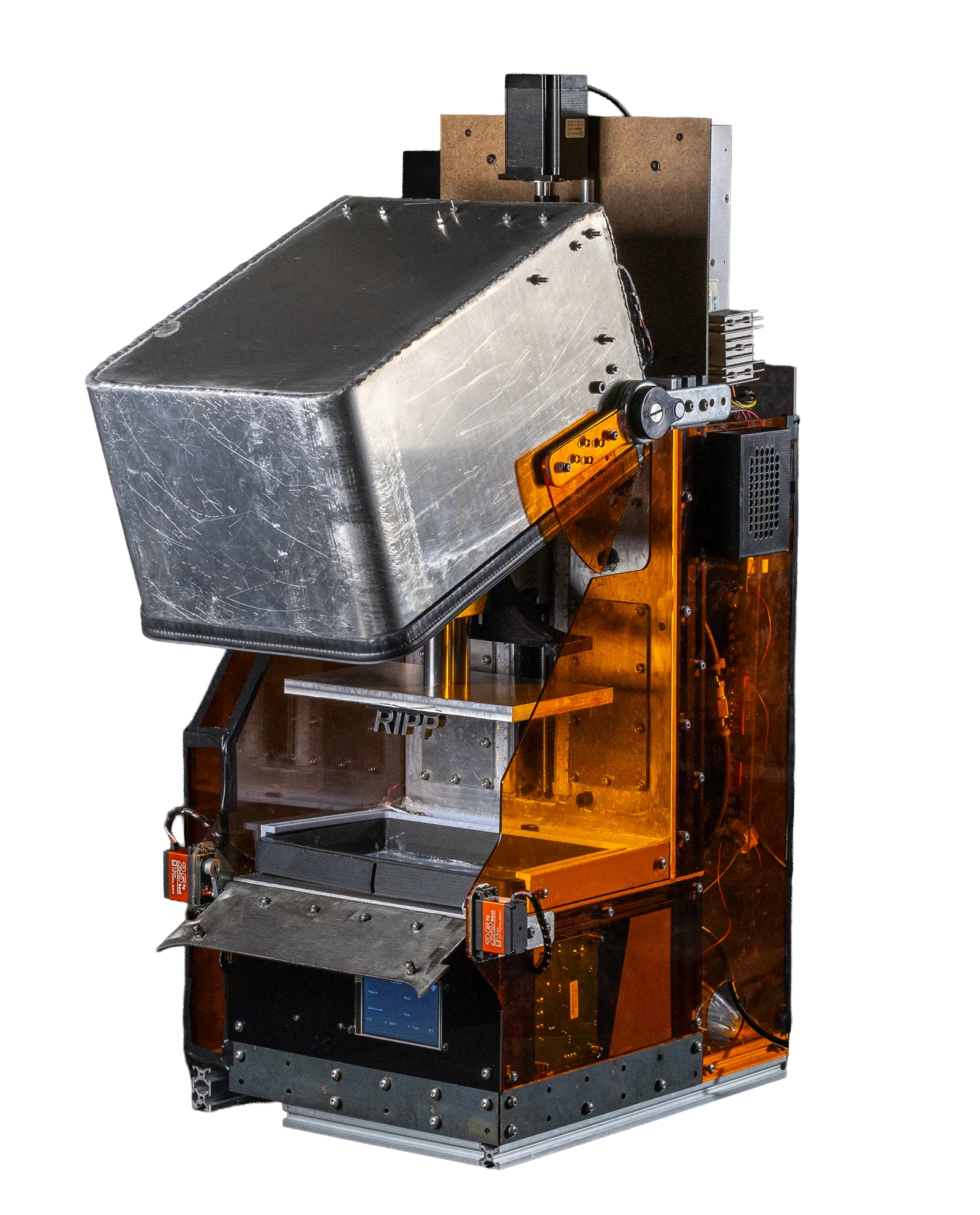

Open RIPP prototype showing the build platform and wash area
RIPP / 01Working prototype

01Print-to-cure automation

The build stays inside.

RIPP moves one build platform through each stage. Printing ends, the wash cycle starts, and UV cure follows without an operator transfer.

  • MSLA printing
  • Automated stage changes
  • Single build platform
RIPP prototype with translucent orange enclosure panels and brushed aluminum surfaces
RIPP / 02Working prototype

02Enclosure & filtration

Close the door. Run the full cycle.

Printing and post-processing share an enclosed work area. Integrated filtration manages process air while the machine runs.

  • Enclosed work area
  • Integrated air filtration
  • Filtered end-of-cycle access

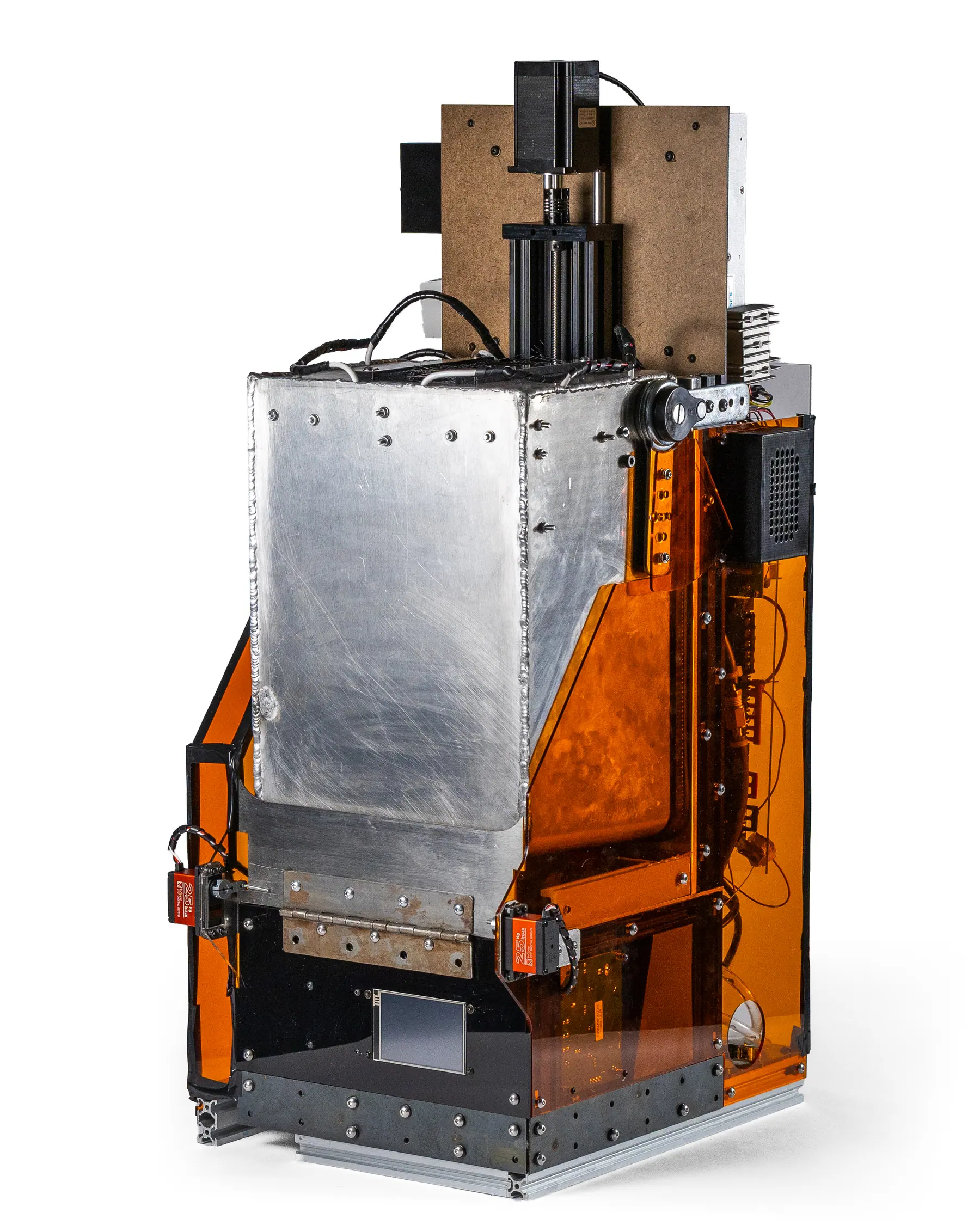

Closed RIPP prototype viewed from the front corner
RIPP / 03Working prototype

03Integrated chassis

Printer, wash, and cure. One footprint.

The motion system, wash hardware, UV stage, filtration, and controls are built into one vertical chassis.

  • Front loading
  • Vertical layout
  • Bench-scale footprint

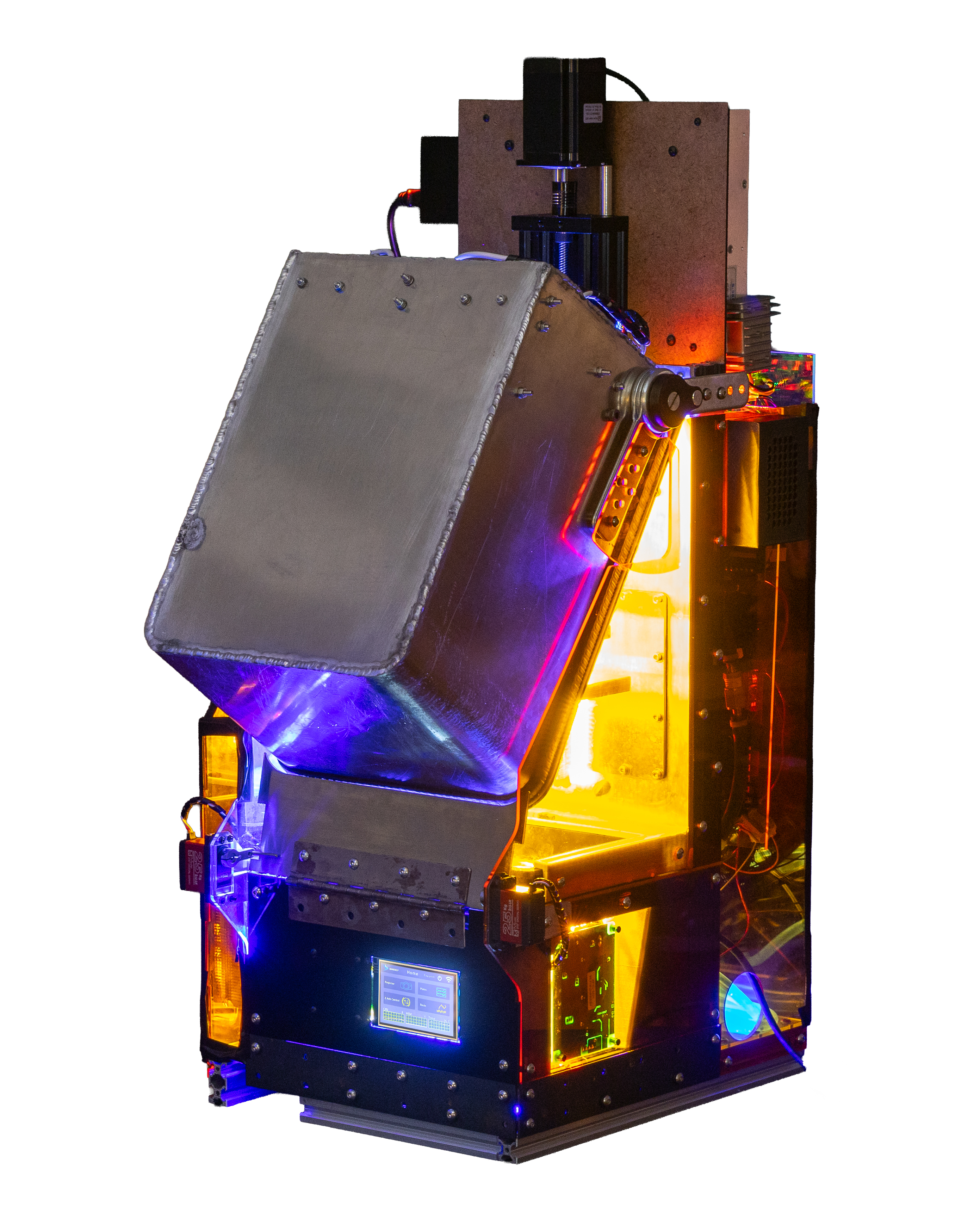

Working RIPP prototype illuminated through orange acrylic
RIPP / 04Working prototype

04Fluid system

Wash fluid stays in the machine.

RIPP pumps wash fluid into the process and drains it through a contained path. There is no open-container transfer between stations.

  • Pumped wash cycle
  • Automated drain
  • Contained fluid path

Workflow comparison

One machine instead of three.

Consideration Conventional setupIndustrial automationRIPP
Equipment Printer + wash + cureIntegrated production lineOne automated system
Part handling Multiple wet transfersRobotic or conveyor handlingNo mid-cycle transfer
Output Wet, uncured printFinished production partFinished, ready-to-handle part
Process enclosure Split across stationsEnclosed systemPrint through cure enclosed
Footprint Several bench positionsDedicated floor spaceOne compact position
Best fit Hands-on desktop useHigh-volume facilitiesStudios and compact production cells

RIPP replaces the separate printer, wash station, and cure chamber used in a standard resin workflow.

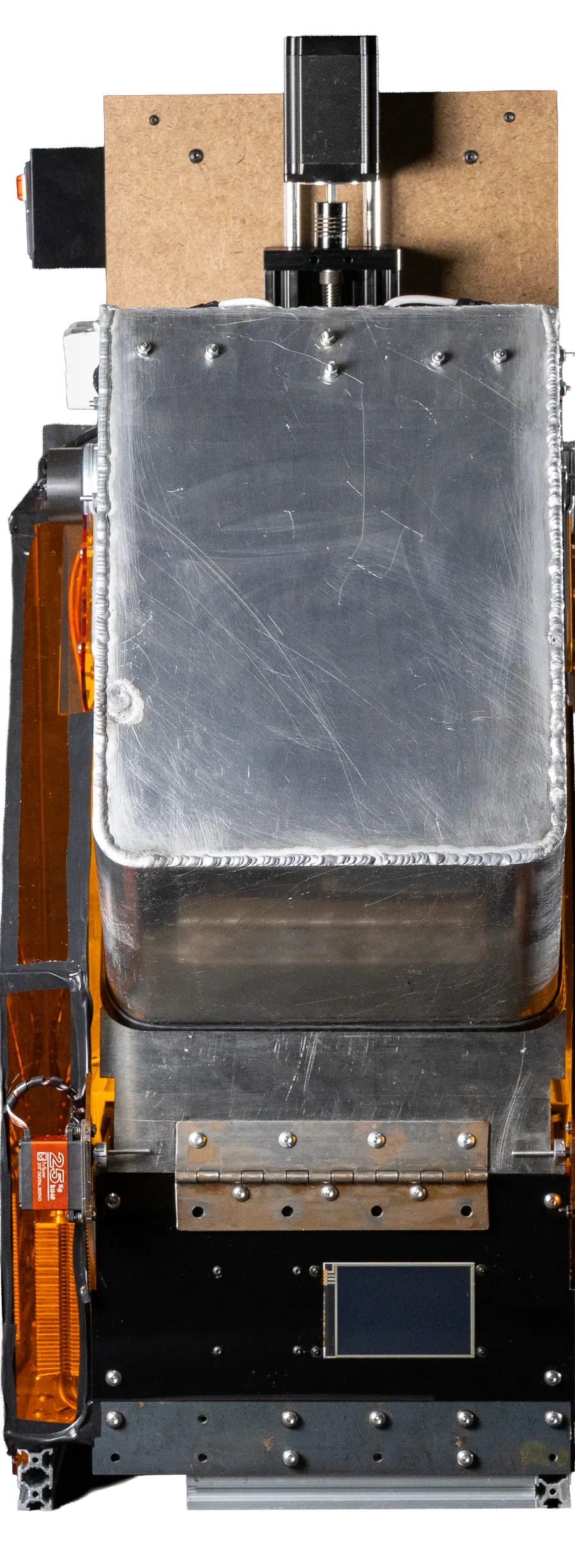

RIPP working prototype Actual prototype

Working prototype

Designed and built at Purdue.

RIPP is a patent-pending working prototype built by Purdue mechanical engineering students. The current machine integrates motion, fluid handling, UV cure, filtration, and controls.

Current development is focused on reliability, service access, and production engineering.

Purdue Mechanical EngineeringWorking hardwarePatent pending

Prototype hardware

System overview

Verified functions in the current RIPP prototype.

Printing process
Resin-based MSLA
Post-processing
Integrated wash and UV cure
Air handling
Enclosed process with fume filtration
Fluid handling
Pumped wash and drain cycle
Structure
Brushed aluminum, black surfaces, orange acrylic
Product status
Working, patent-pending prototype

Development status

Prototype complete. Product development underway.

The team is testing reliability, refining the enclosure, and preparing for a planned Spring 2027 Kickstarter campaign.

  1. 01

    Concept development

    Complete
  2. 02

    Integrated prototype

    Complete
  3. 03

    Reliability and enclosure refinement

    In progress
  4. 04

    Pre-launch testing

    Planned
  5. 05

    Kickstarter campaign

    Planned
  6. 06

    Manufacturing preparation

    Planned
